Industrial Dust Cleaning Machine Modular Baghouse
Industrial Dust Collect Solution:
Our bag type filter is a kind of small and medium-sized pulse jet dust collector. The most high efficient dust removal for your dust prevention circumstance. To adopt pulse blowing dedust and PLC controller, the automatic working can be come true. The advantage is reliable operation, easy maintenance and management. Through our design program and every kind of detectors signal, we can see every parts of the equipment during it working. Our dust collector equipment often can be widely used in cement, metallurgy, electric power, chemical and other industries of dust gas purification and fine powder material recycling collection.
Dust Cleaning Machine Structure Composition:
The customized dust catcher are composed by the filter chamber housing, clean air chamber enclosure, filter bag, filter cage, pulse injection device, ash hopper, screw conveyor and discharger, etc. At the end, it needs centrifugal fan for power system. In another type of dust catcher, the dedusting job can be done by every chamber isolation. The every chamber of the pulse and soot cleaning cycle by soot cleaning program controller.
Dust Collector Advantages:
GD horizontal electrostatic precipitator is economical and convenient for installation, adjustment and maintenance. It can be widely used for gas filtration in electricity, metallurgy, chemicals, building materials, and other industries.
1. The inside of electric field is maintenance-free, and the maintenance outside external electrical field can be done during running ;
2. Large corona wire stiffness, good discharge performance, can continue to work effectively;
3. Rapping intensity, period, sequence can be adjusted in accordance with the appropriate requirements;
4. High temperature resistance, can work under 450 ℃. Solid structure, nice rapping force transmission, a wide range of applications;
Dust Collector Specifications:
| Model |
Circulation Area
(㎡) |
Collecting Area
(㎡) |
Electric Field Height
(m) | Flow Rate (m³/h) | Electric Field |
Dust Collecting Efficiency
(%) | Electric Field Length (m) | Electrode Spacing ((mm)) | Channel | Wind Speed (m/s) | Weight ( t ) |
| GD40 | 40 | 2355 | 9 | 115200-172800 | 3 | 98-99.7 | 3×3 | 400 | 11 | 0.8-1.2 | 116.5 |
| GD45 | 45 | 2617 | 10 | 129600-194400 | 3 | 98-99.7 | 3×3 | 400 | 11 | 0.8-1.2 | 128.2 |
| GD50 | 50 | 2980 | 8.35 | 144000-216000 | 3 | 98-99.7 | 3×3 | 400 | 15 | 0.8-1.2 | 143.4 |
| GD60 | 60 | 3569 | 10 | 172800-259000 | 3 | 98-99.7 | 3×3 | 400 | 15 | 0.8-1.2 | 170.3 |
| GD70 | 70 | 4175 | 11.7 | 201600-302400 | 3 | 98-99.7 | 3×3 | 400 | 15 | 0.8-1.2 | 198.6 |
| GD80 | 80 | 4746 | 10.5 | 230400-345600 | 3 | 98-99.7 | 3×3 | 400 | 19 | 0.8-1.2 | 224.6 |
| GD90 | 90 | 5356 | 11.82 | 259000-388800 | 3 | 98-99.7 | 3×3 | 400 | 19 | 0.8-1.2 | 247.5 |
| GD100 | 100 | 5967 | 13.2 | 288000-432000 | 3 | 98-99.7 | 3×3 | 400 | 19 | 0.8-1.2 | 275.1 |
| GD110 | 110 | 6566 | 12 | 316800-475200 | 3 | 98-99.7 | 3×3 | 400 | 23 | 0.8-1.2 | 297.3 |
| GD120 | 120 | 7113 | 13 | 345600-518400 | 3 | 98-99.7 | 3×3 | 400 | 23 | 0.8-1.2 | 321.3 |
| GD150 | 150 | 8023 | 13 | 388000-623000 | 3 | 98-99.7 | 3×3 | 400 | 28 | 0.83-0.89 | 395.6 |
| GD200 | 200 | 11050 | 13 | 450000-725000 | 3 | 98-99.7 | 3×3 | 400 | 28 | 0.9-1.05 | 526.4 |
Product Tags:
|
|

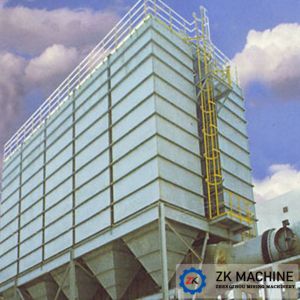

Industrial Dust Cleaning Machine Modular Baghouse Images
|
